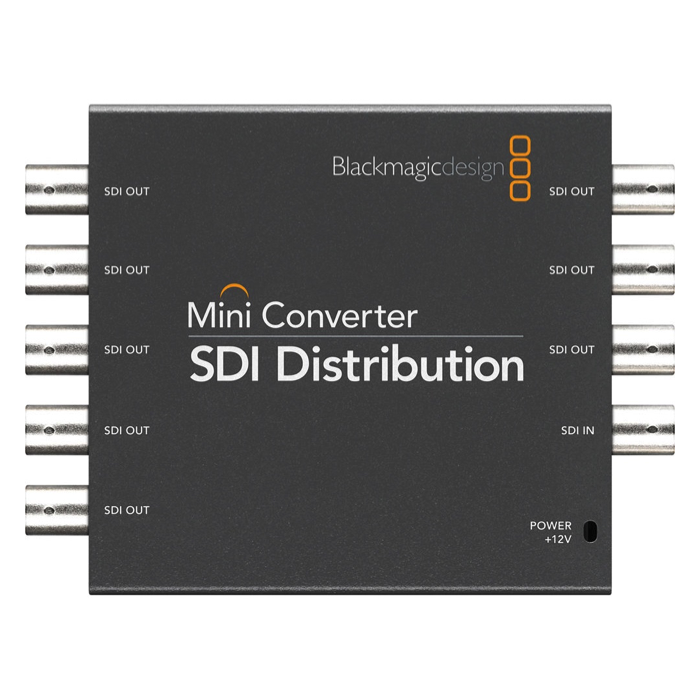

Blackmagic Mini Converter SDI Distribution 4K

£20 + VATPer day
£60 + VATPer week

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution!

Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.

Blackmagic Mini Converter SDI Distribution 4K Hire London
Blackmagic Mini Converter SDI Distribution 4K Rental London

Included in Kit

1x Blackmagic Mini Converter SDI Distribution 4K
1x Mains Adapter
(Please Ask If You Require Any SDI Cables)

Specs

Connections
SDI Video Inputs: Switchable between SD, HD and 6G-SDI.
Reclocking: Yes
SDI Video Outputs: 8 outputs automatically match the SDI video input.
Multi Rate Support: Auto detection of SD, HD or 6G-SDI.

Standards
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081
SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision: 4:2:2 and 4:4:4
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.
ASI Support: Yes

SD Video Standards:
525i59.94 NTSC, 625i50 PAL

HD Video Standards:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30,
1080p50, 1080p59.94, 1080p60

2K Video Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
