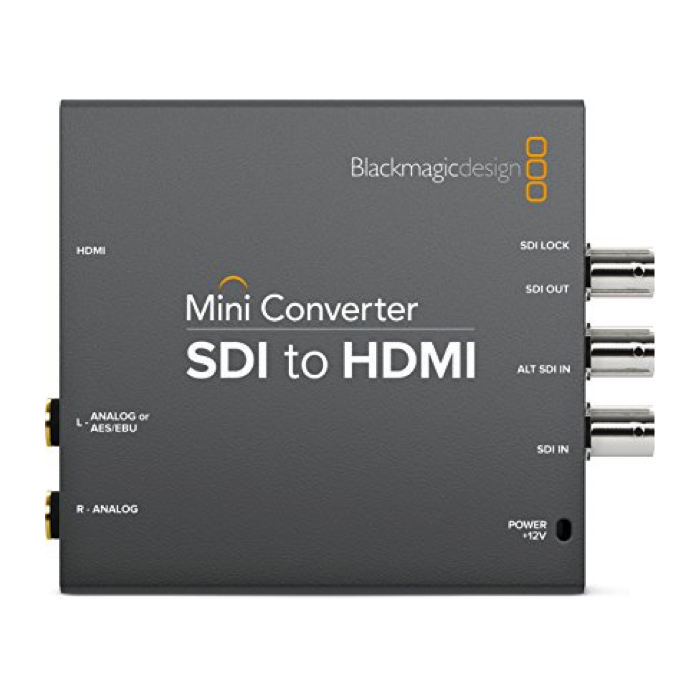

Convert an SDI input to HDMI output. Perfect for connecting SDI camera outputs to HDMI monitors on location.
Includes SD/HD auto switching and features SDI loop through for connection to further equipment.
Blackmagic Converter SDI To HDMI Hire London
Blackmagic Converter SDI To HDMI Rental London
1x Blackmagic Converter SDI To HDMI
1x Mains Adapter
(Please Ask If You Require Any HDMI/SDI Cables)
Connections
SDI Video Input: 1 x SD, HD or 3G-SDI.
SDI Video Output: Automatically matches the SD, HD and 3G-SDI video input
HDMI Output: 1x HDMI, HDMI type A out.
SDI Redundant Input: Automatically switches over if main SDI input is lost.
Multi Rate Support: Auto detection of SD, HD or 3G-SDI
Standards
SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M.
SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision: 4:2:2 and 4:4:4
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects SD, HD or 3G-SDI.
SD Format Support:
525/23.98 NTSC, 525/29.97 NTSC, 625/25 PAL
HD Format Support:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,
1080p59.94, 1080p60.
2K Format Support:
2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24,
2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
HDMI Format Support:
625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98,
2048 x 1080p24, 2048 x 1080p25
HDMI Color Space: YUV and RGB
HDMI Color Precision: 4:2:2 and 4:4:4
