Multi-Viewer Decimator 2 – 12 SDI Inputs – Splits Screen 2,3,4,5,6,7,8,9,10,11or 12 HDMI Outputs For 3G/HD/SD

£80 + VATPer day

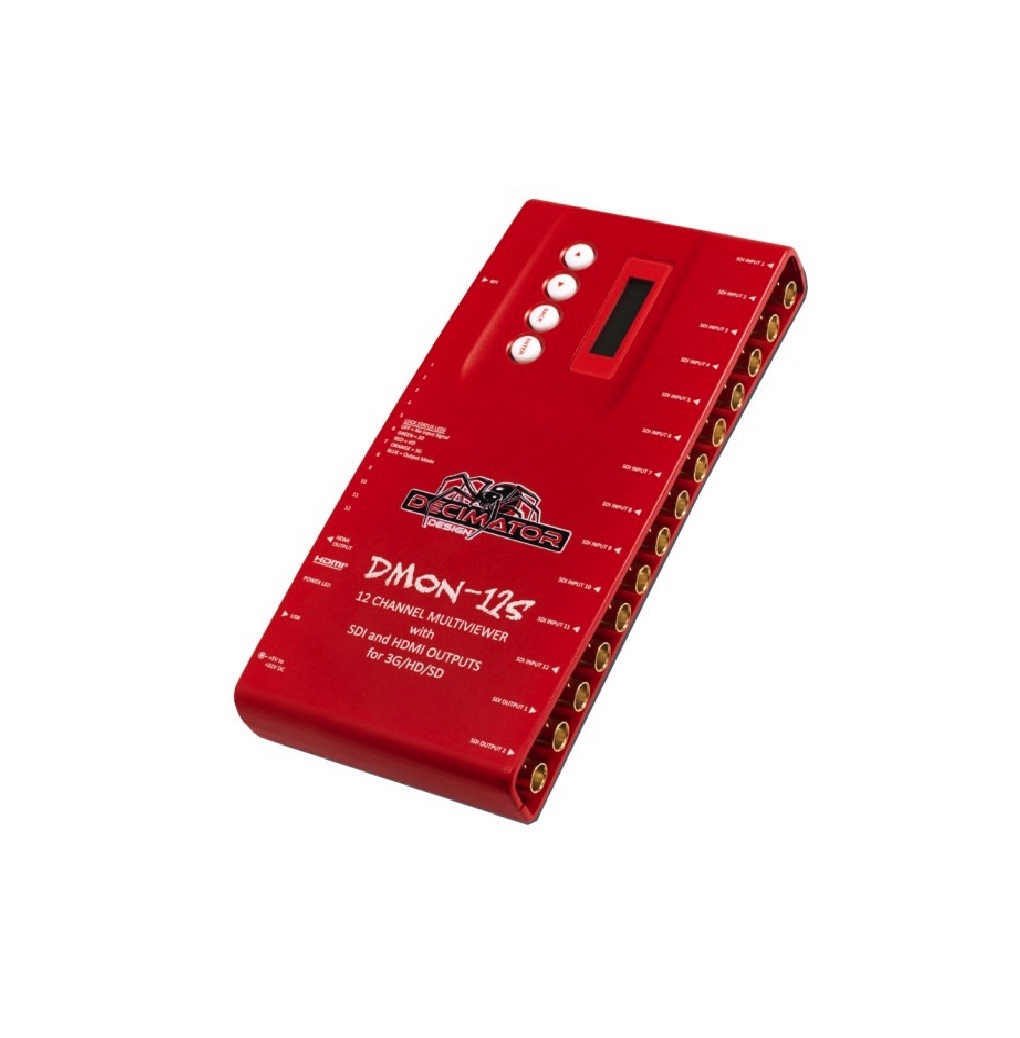

Decimator Design DMON-12S is 1 to 12 Channel Multi-Viewer with SDI and HDMI Outputs for 3G/HD/SD and Custom Layouts, UMDs, Audio Meters, Graticules and Tallies.





Decimator Design DMON-12S Hire Rental


Included in Kit

Decimator Design DMON-12S


Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.

Low cost miniature (3G/HD/SD)-SDI 1 to 12 channel Multi-Viewer or 12 to 1 input multiplexer

Custom Layouts with various standard layouts

16 Character UMD overlay per window with individual enables, custom positioning and size

16 Channel Audio Metering overlay per window with individual enables, custom positioning and size

Safe Action and Safe Title overlay per window with individual enables and adjustment

Centre Cross overlay per window with individual enable

Audio ID overlay

Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border

Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)

Load and restore Custom Layouts

Fast switching between inputs using Full-Screen scaling

Selectable output format in both Full-Screen and Multi-Viewer mode

Low latency buffering for each input allowing non-synchronous inputs

Linked (3G/HD/SD)-SDI and HDMI outputs

12 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

Variable aspect ratios per window

Pass-Through mode allowing any of the 12 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
