Blackmagic ATEM Switcher is designed for both broadcasters and AV professionals.

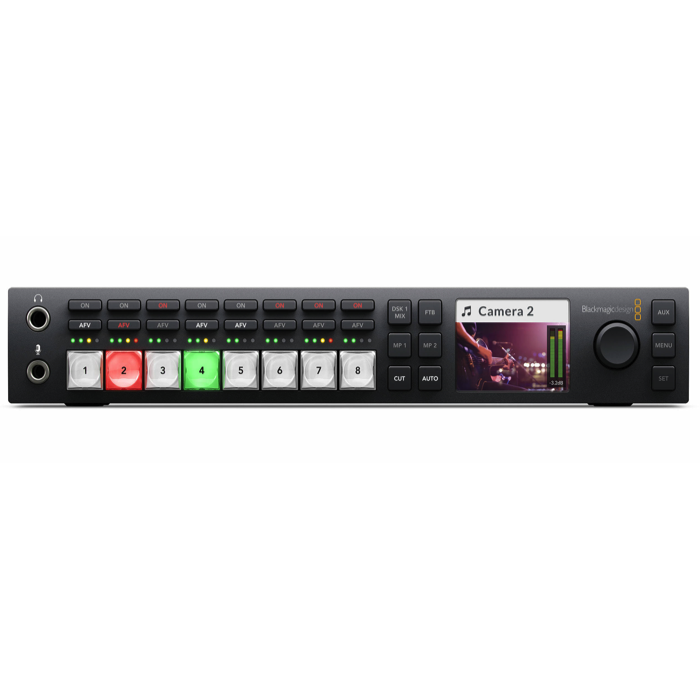

Blackmagic Design ATEM Television Studio HD Switcher Hire Rental London

Included in Kit

1x Blackmagic Design ATEM Television Studio HD
1x Mains Lead
Bag
(Please Let Us Know If You Require Any HDMI/SDI Cables)

Specs

Connections
Total Video Inputs: 8
Total Outputs: 8
Total Aux Outputs: 1
SDI Rates: 270Mb, 1.5G, 3G.
Total Audio Inputs: 2 x XLR.
Total Audio Outputs: None, embedded audio only.
Timecode Connection: None.
SDI Video Inputs
4 x 10-bit SD/HD switchable. 2 channel embedded audio.
HDMI Video Inputs
4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio.
Reference Inputs: Tri-Sync or Black Burst.
Video Input Re-Sync:On all 8 inputs.
SDI Program Outputs: 5 x 10-bit SD/HD switchable.
HDMI Program Outputs: None.
SDI Audio Outputs: 2 Ch embedded into SDI output.
Computer Outputs: None.

Standards
SD Video Standards:
525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9

HD Video Standards:
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94,
1080i50, 1080i59.94

Ultra HD Video Standards: None.
SDI Compliance: SMPTE 259M, 292M and 424M.
Video Sampling: 4:2:2 10-bit
Color Precision: 4:2:2 10-bit
Color Space: 4:2:2 YUV

HDMI Input Resolutions for Computers:
720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
Colorspace Conversion
Hardware based real time.
Processing Delay
6 Lines.

Audio Mixer
10 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
Headphone output level control with separate mix of Program, Talkback and Sidetone.

Multi View Monitoring
Multi View Monitoring: 1 x 10 Views.
Multi View Video Standard: HD
