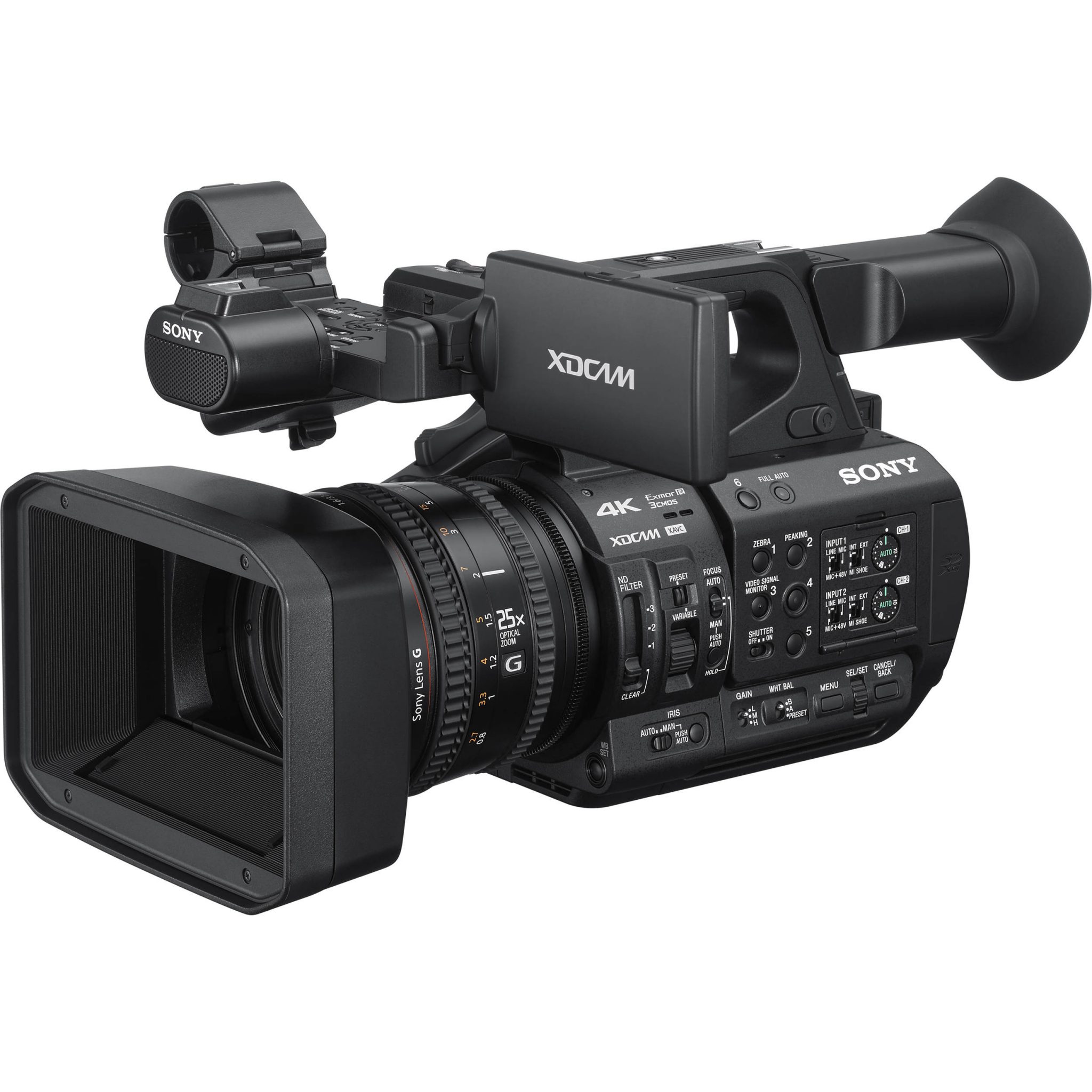

SONY PXW-Z190 4K

Hire Price Per Day: £130 + VAT
Hire Price Per Week: £520 + VAT
Hire Price 2x Weeks: £780 + VAT

Sony PXW-Z190 4K Handheld Camcorder with  1/3-type 3CMOS, 4K 50p/60p recording capability, 25x zoom lens and advanced Face Detection AF.

This superb all-rounder is the de facto choice for a wide range of 4K and HD single camera shoots with 1/3-type 3CMOS sensor. A powerful 25x zoom lens with three independent lens rings delivers pin-sharp 4K imaging for almost any professional shooting scenario. Advanced Face Detection AF and Sony’s unique Electronic Variable ND filter making shooting great content stress-free.

Instant HDR means you can deliver stunning imagery quickly without need for additional colour grading. Dual MI Shoe allows simultaneous use of wireless audio and video lighting, while advanced network performance support is easily enabled when required.

Sony’s familiar control layout and robust build quality make this a camera you can rely upon. It supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD* and Proxy 1080i. Dual SD slots, 3G-SDI output and Remote Terminal ensure it can support all workflow scenarios.

The PXW-Z190 is the world’s first professional camcorder with a 4K (QFHD) 1/3-inch type sensor. Red, blue, and green light are independently captured by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps. Even if you’re delivering in HD, 4:2:2 10bit recordings will capture detail and image texture that HD sensors simply cannot see.

The PXW-Z190 features newly developed Face detection AF. You can choose between Face Priority AF and Face Only AF. Simply keep the person in frame and however you move to obtain a better angle, you can be confident the PXW-Z190 will keep your subject in pin-sharp focus.

Shoot, edit and view HDR content in HLG without the need for additional colour grading. Premium content services are switching to HDR and the PXW-Z190 is ready with Hybrid Log-Gamma (HLG) recording, for easy file-based workflows, whilst achieving the image quality of HDR. This simple workflow enables the shooting, editing and viewing of HDR content in HLG, without devoting a lot of time to post-production work and additional colour grading.

SONY PXW-Z190 4K Camcorder Hire London
SONY PXW-Z190 4K Camcorder Rental London

Included in Kit

2x Sony Batteries
1x Battery Charger
2x SanDisk 128GB SD Cards
1x SD Card Reader
1x SDI Cable
1x HDMI Cable
1x Headphones

Specs

Recording Format (Video)
XAVC-L QFHD mode: VBR, mimum bit rate 150Mbps,
MPEG-4 H.264/AVC XAVC-L HD 50 mod VBR, maximum bit rate 50Mbps,
MPEG-4 H.264/AVC XAVC-L HD 35 mode: VBR, maximum bit rate 35Mbps,
MPEG-4 H.264/AVC XAVC-L HD 25 mode: VBR, maximum bit rate 25Mbps,
MPEG-4 H.264/AVC   DVCAM mode: CBR, 25Mbps, DVCAM

Recording Format (Audio)
XAVC-L mode: LPCM 24-bit, 48kHz, 4 channels
DVCAM mode: LPCM 16-bit, 48kHz, 4 channels

Recording Frame Rate
XAVC-L QFHD 150 mode: 3840×2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode: 1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280×720/59.94P, 50P
XAVC-L HD 35 mode: 1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 25 mode: 1920×1080/59.94i, 50i
DVCAM mode: 720×480/59.94i, 29.97PsF 720×576/50i, 25PsF

Recording/Playback Time
XAVC-L QFHD 150 mode When using 128GB memory card: Approx. 88 minutes
XAVC-L HD 50 mode When using 128GB memory card: Approx. 240 minutes
XAVC-L HD 35 mode When using 128GB memory card: Approx. 325 minutes
XAVC-L 25 mode When using 128GB memory card: Approx. 445 minutes

Recording Format (Proxy Audio)
XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording Format (Proxy Video)
XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR 1920×1080, 9Mbps 1280×720, 9Mbps 1280×720, 6Mbps 640×360, 3Mbps 480×270, 1Mbps 480×270, 0.5Mbps

Lens Mount
Fixed type

Zoom Ratio
25x

Iris
Auto/manual swichable F1.6 to F11 and C(close)

Focus
800 mm to ∞ (Macro Off) 10 mm to ∞ (Macro On, Wide) 800 mm to ∞ (Macro On, Tele) AF/MF/Full MF selectable

Image Stabilizer
On/Off selectable, shift lens

Filter Diameter
M 82 mm , pitch 0.75 mm

Imaging Device (Type)
1/3 type back-illuminated Exmor R 3CMOS sensor

Effective Picture Elements
3840 (H) x 2160 (V)

Optical System
F1.6 prism system

Built-in Optical Filters
ND filters OFF: CLEAR 1: 1/4ND 2: 1/16ND 3: 1/64ND Linear variable ND (Approx. 1/4ND to 1/128ND)

Sensitivity (2000 lx, 89.9% reflectance)
F11 (typical, 1920 x 1080/59.94p, High Sensitivity Mode) F12 (typical, 1920 x 1080/50p, High Sensitivity Mode)

Minimum Illumination
0.02lx (typical) (1920 x 1080/59.94i mode, F1.6, +30 dB gain, High Sensitivity Mode, with 64 frame accumulation)

Horizontal Resolution
2,000 TV lines or more (3840 x 2160p mode) 1,000 TV lines or more (1920 x 1080p mode)

Shutter Speed
1/24 sec to 1/8,000 sec

Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation

Slow and Quick Motion Function
2160P: 1-60 fps 1080P: 1-60 fps 720P: 1-60 fps

White Balance
Preset (3200K), Memory A, Memory B/ATW

Gain
-3, 0, 3, 6, 9, 12, 18 dB, 30dB (Turbo Gain ON), AGC

Gamma Curve
Selectable

Input/OutputAudio Input
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable LINE:+4, 0, -3dBu/10kΩ MIC:-80dBu to -30dBu /3kΩ (0 dBu=0.775 Vrms)

Audio Output
Integrated into Multi/Micro USB jack(x1)

HDMI Output
HDMI connector (Type A)

SDI Output
BNC (x1), 3G/HD/SD selectable

Timecode Input
BNC (x1) (switchable to TC out) 0.5V-1.8Vp-p, 3.3kΩ

Timecode Output
BNC (x1) (switchable to TC in) 1.0Vp-p, 75Ω

USB
USB device, Multi/Micro USB jack (x1) Host:USB 3.0/2.0 type A(x1) USB 2.0 type A(x1)

Headphone Output
Stereo mini jack (x1) -16dBu 16Ω

Speaker Output
Monaural Output: 500mW

DC Input
DC jack

Remote
Stereo mini-minijack (Φ2.5 mm)

Wired LAN
RJ-45 (x1), 1000BASE-T, 100BASE-T, 10BASE-T

Built-In MicrophoneBuilt-in Microphone
Omni-directional stereo electret condenser microphone

MediaType
MS/SD(1),SD(1)

Wi-Fi/NFCSupported Format
IEEE 802.11 a/b/g/n/ac

Frequency Band
2.4 GHz bandwidt 5.2/5.3/5.6 GHz bandwidth
