With a 450ft (150m) line of sight (LOS) range and ultra-low latency of 0.06s, the Mars 4K is designed to meet the demands of professional video production.
Hollyland Mars 4K Wireless Video Transmission Hire Rental London
£60 + VATPer day

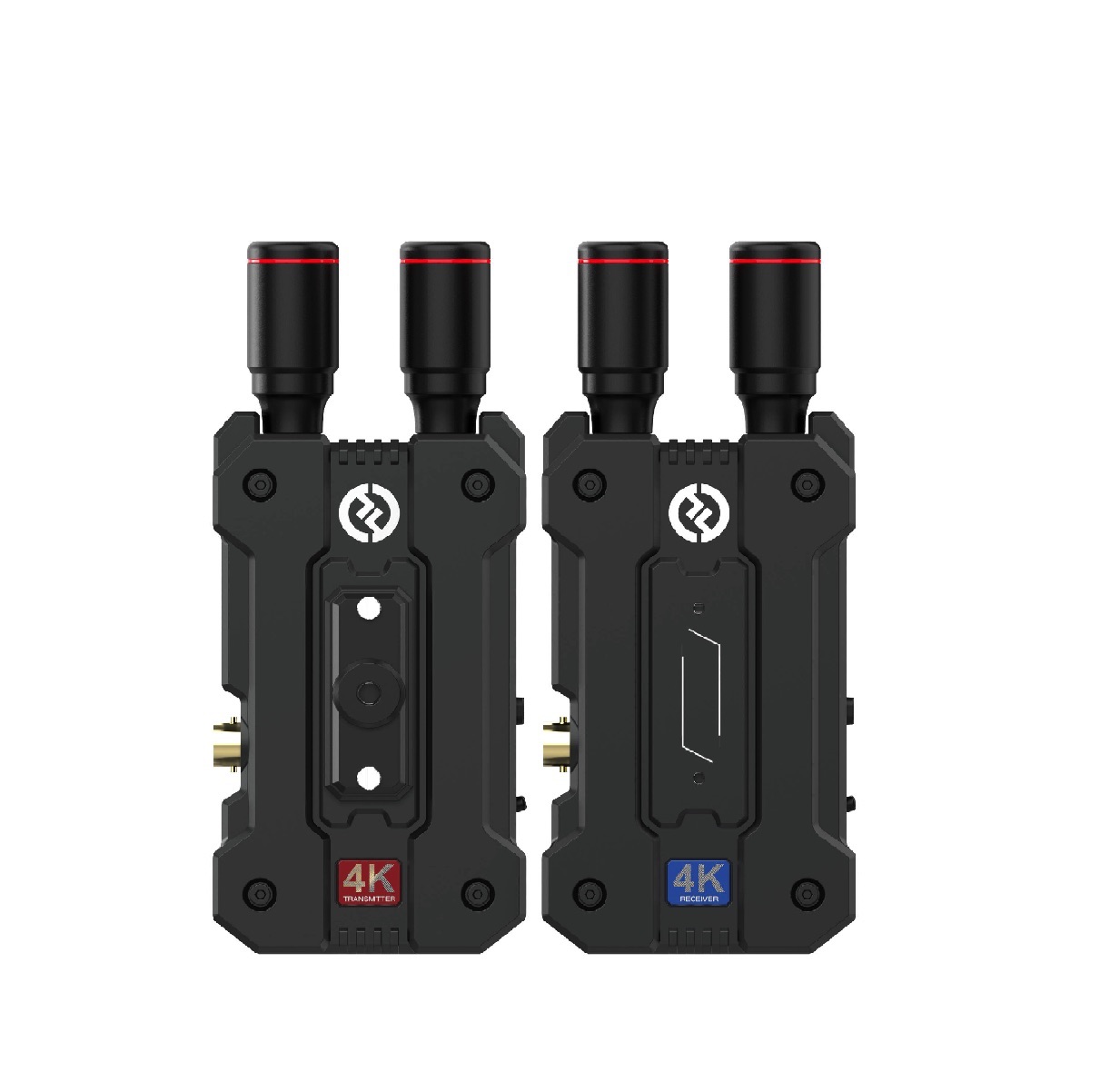

Hollyland Mars 4K Wireless Video Transmission
Included in Kit
1x Transmitter
1x Reciever
5x Antenna
1x Cold Shoe
1x Type-C OTG Converter
1x Self-Locking DC Adapter
2x v-Locks
Specs
Transmitter
Interface:
Antenna (RP-SMA male)HDMI 1.4 b input (Type-A female)3G-SDI inputDC input (2.0mm core socket)USB Type-C (USB 2.0 OTG)
Voltage
DC input: 6V–16VUSB Type-C: 5V/2.5A(not supporting the QC and PD protocols)NP-F battery: 6.8V–8.4V
Power consumption
<8.5W (typical)
Weight
223g (7.9oz) (excluding the antennas)
Dimension (LxWxH)
115x65x32mm (4.5″x2.5″x1.3″)
Operating frequency
5.1GHz–5.8GHz
Modulation mode
802.11n
TX power
21dBm (max.)
RX sensitivity
N/A
Bit rate
8Mbps–20Mbps
Latency
0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range
450ft (150m) (test data in an open, interference-free outdoor environment)
Bandwidth
20MHz
Audio format
2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b
Receiver:
Interface
Antenna (RP-SMA male)HDMI 1.4 b output (Type-A female)3G-SDI outputDC input (2.0mm core socket)USB Type-C (USB 2.0 OTG)
Voltage
DC input: 6V–16VUSB Type-C: 5V/2.5A(not supporting the QC and PD protocols)NP-F battery: 6.8V–8.4V
Power consumption
<5W (typical)
Weight
223g (7.9oz) (excluding the antennas)
Dimension (LxWxH)
115x65x32mm (4.5″x2.5″x1.3″)
Operating frequency
5.1GHz–5.8GHz
Modulation mode
802.11n
TX power
21dBm (max.)
RX sensitivity
–90dBm
Bit rate
8Mbps–20Mbps
Latency
0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range
450ft (150m) (test data in an open, interference-free outdoor environment)
Bandwidth
20MHz
Audio format
2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b
