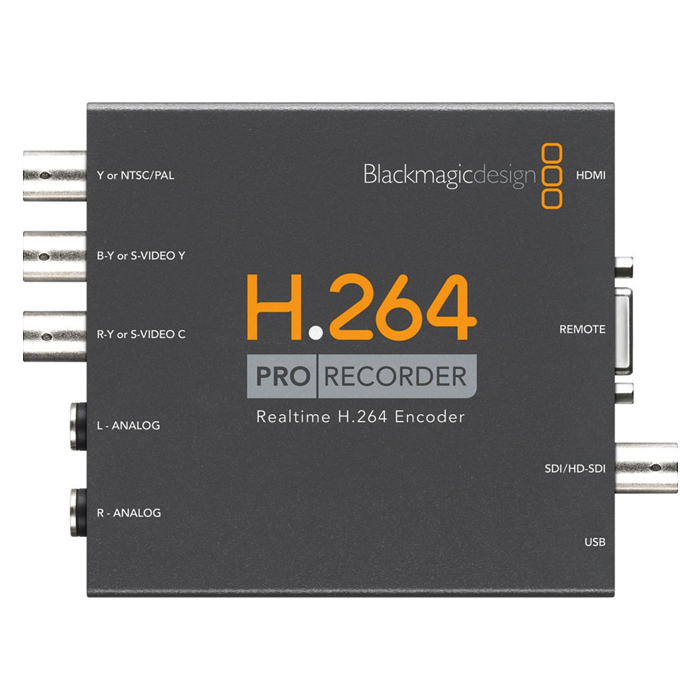

Blackmagic Streaming Webcast Encoder H.264 Pro
Blackmagic Streaming Webcast Encoder H.264 Pro Rental London
Included in Kit
1x Blackmagic Streaming Webcast Encoder H.264 Pro
1x Mains Adapter
(Please Ask If You Require Any HDMI/SDI Cables)
Specs
Input
SDI Video Input: 1x 12 bi SD/HD switchable
Analog Video Input: 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
HDMI Video Input: 1 x HDMI type A connector.
SDI Audio Input: 2 Channels from embedded SDI audio.
Analog Audio Input: 2 Channels of professional balanced analog audio with standard 1/4 inch jack connections.
HDMI Audio Input: 2 Channels from embedded HDMI audio.
Device Control
Sony compatible RS422 deck control port.
Computer Interface
USB 2.0 high speed (480Mb/s)
Standards
SDI Compliance: SMPTE 259M and 292.
Multiple Rate support: SDI, HDMI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD-SDI.
Video Sampling: 4:2:2
Color Precision: 12 bit
Color Space: 4:2:2 YUV
Audio Sampling, Television standard sample rate of 48 kHz and 24 bit.
HDMI Color Precision, 12 bit
HD Format Support
720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24,
1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30,
1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.
SD Format Support
625/25 PAL, 525/29.97 NTSC and 480p.
Processing & Encoding
Hardware based real time H.264 encoder supports multiple profiles for small, portable video devices through to full resolution HDTV.
Realtime Scaling.
Capture at full HD or SD resolution, or use direct resize in realtime to scale and encode for the intended playback device, such as iPhone, iPad or iPod.
Realtime Cropping.
Adjustable tools provide realtime cropping of unwanted video artifacts such as black borders and VHS switching.
Copy Protection
For legal reasons HDMI input is unable to capture from copy protected HDMI sources.
Always confirm copyright ownership before capture or distribution of content.
