Blackmagic Converter SDI To HDMI allows converting HDMI to SDI in SD and HD formats.

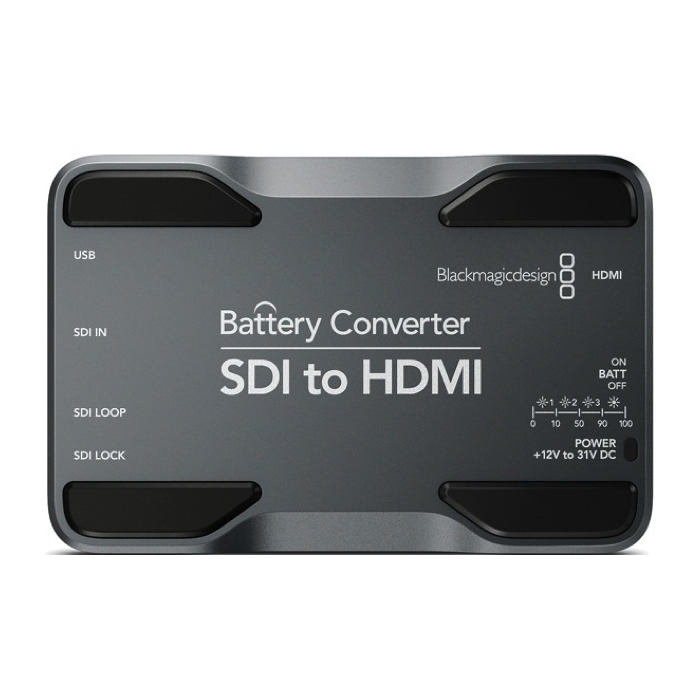

Blackmagic Battery Converter SDI To HDMI Hire Rental London

Included in Kit

1x Blackmagic Battery Converter SDI To HDMI
1x Mains Adapter
(Please Ask If You Require Any HDMI/SDI Cables)

Specs

Connections
SDI Video Input: Switchable between SD, HD and 3G-SDI.
SDI Video Output: 1x SD/HD-SDI loop output.
HDMI Output: 1x HDMI out, HDMI type A out.
Multi Rate Support: Auto detection of Level B 3G-SDI, HD or standard definition SDI inputs.

Standards
SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-B, 425M-B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling: 4:2:2
SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision: 4:2:2
SDI Color Space: YUV
SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI and 3 Gb/s SDI.
HDMI Color Space: YUV and RGB
HDMI Color Precision

SDI Format Support:
480 NTSC, 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

HDMI Format Support:
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

Power
AC powered or in-built battery
2 hours battery life
