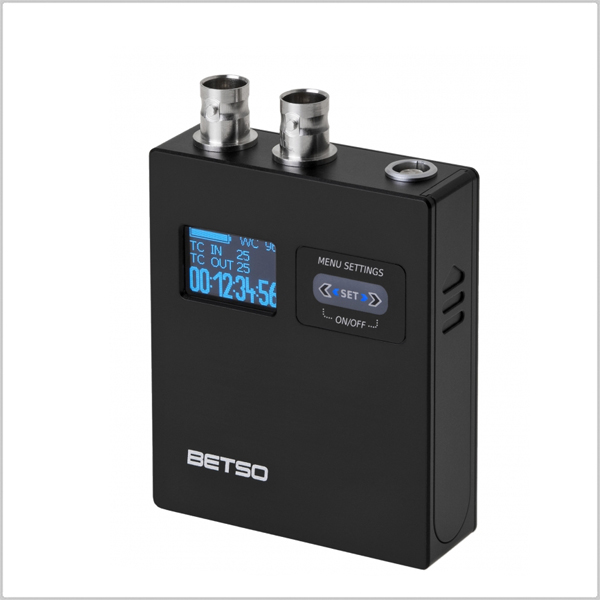

Time Code & World Clock Generator BETSO SBOX-1N

£20 + VATPer day
£80 + VATPer week

The SBOX-1N can receive, precisely jam or start to generate new time codes of all existing SMPTE time code formats. Also, all commonly used word clock formats are supported, including their pull-up and pull-down options.







BETSO SBOX-1N Time Code and World Clock Generator Hire Rental London

Included in Kit

1x BETSO SBOX-1N Time Code and World Clock Generator

Specs

SMPTE TC formats
23,976 fps – 30 fps including DF and NDF (also 0.5 and 2 multiples: 11.98 fps – 60 fps supported)

Output TC amplitude
Adjustable from -18dBu to +6dBu

Input TC sensitivity
0.2 – 10 V (p-p)

TCXO crystal
Temperature compensated oscillator (+/- 0.2 ppm)

Accuracy error
Less than 0.5 frames / 24 hours

Wordclock
32 – 192 kHz including PAL/SECAM and NTSC pull-up and pull-down options

Display
1“ blue OLED with adjustable brightness

Powering
2x AA battery (alkaline or lithium) / 2x accu (NiMH, NiCd)

External powering
0.9 – 3 V DC

Current consumption
40 – 80 mA *
