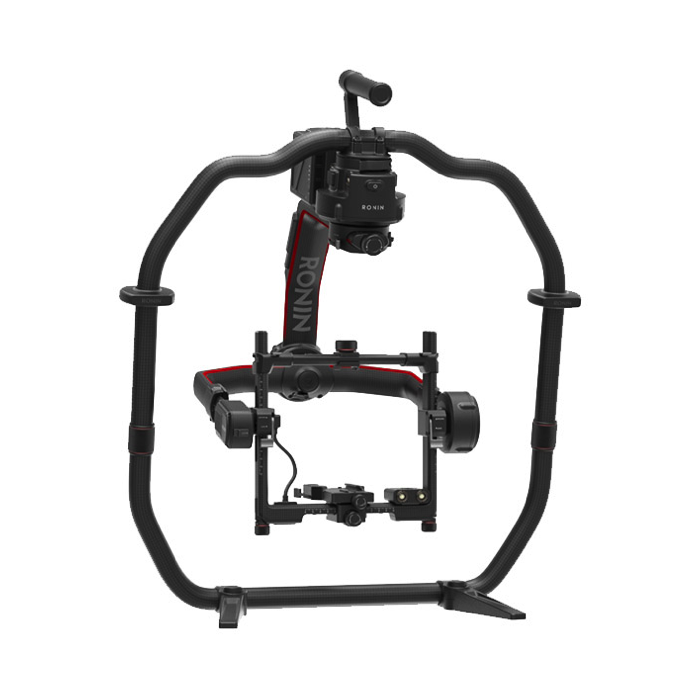

DJI Ronin 2 Gimbal

Please Contact Us For PricesPer day

The DJI Ronin 2 is the sucessor to the DJI Ronin. It is the prefect camera stabilization to meet all your needs whether they be handheld or mounted on a vehicle, cable system, Steadicam or drone.

The DJI Ronin 2 supports upto 30lbs in payload capacity making it easy for you to use a variety of cameras and lens. So if one day you need to use your DSLR and the next your Sony FS7 you’re set to go with this versatile gimbal.

DJI Ronin 2 Gimbal Hire London
DJI Ronin 2 Gimbal Rental London

Included in Kit

1x DJI Ronin 2 Gimbal
2x Batteries
1x Charger
1x Remote Control
Gimbal Accessories


Working Performance

Load Weight (Reference Value)
30 lbs (13.6 kg)

Run Time
8 hours
2.5 hours (when powering gimbal, camera and accessories at the same time)

Angular Vibration Range
plus/ minus 0.02 deg

Maximum Controlled Rotation Speed
Pan axis: 400 deg/s
Tilt axis: 360 deg/s
Roll axis: 360 deg/s

Mechanical Endpoint Range
Pan axis control: 360 deg continuous rotation
Tilt axis control: plus/ minus 135 deg
Roll axis control: plus/ minus 220 deg

Controlled Rotation Range
Pan axis control: 360 deg continuous rotation
Tilt axis control: +45 deg to -135 deg
Roll axis control: plus/ minus 45 deg

Compatible Cameras
RED Dragon, ARRI Alexa Mini, Blackmagic URSA Mini, Canon C300, Sony FS7

Built-In Functions
Operation Modes; Underslung Mode, Upright Mode, Briefcase

Handheld, Car Mount, Aerial, Tripod, & Steadicam Mode

independent IMU module
DJI Advanced 32-Bit ARM Processor
DJI Specialized Gimbal Drive Motors with Encoders
Dual Battery System
Bluetooth Module
D-Bus Receiver Supported
2.4 GHz/5.8 GHz Receiver
Temperature Sensors
Built-in Touch Panel
Built-in GPS
USB Type-C Connection
Power and Video Signal through Slip Ring

Operating Temperature
-4 degF – 122degF (-20 degC – 50 degC)

Including handle bar: 12 lb (5.5 kg)
Excluding handle bar: 9 lb (4.2 kg)

Gimbal Dimensions
Excluding handle bar: 350 mm (W) x 416 mm (D) x 530mm (H)
Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)

Camera Tray Dimensions
Maximum depth from the center of gravity on camera base plate: 245 mm
Maximum height measured from top of the camera base plate: 165 mm
Maximum width: 180 mm

Accessory Power Connections
14.4 V x 4 Camera Cage (Combined 8 A),
12.6 V x 2 Pan Motor (Combined 4 A), 12.6 V x1 P-Tap (8 A)

GCU Input Power
Intelligent Battery: 4280 mAh-22.8 V

2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C

PC Assistant Software Requirements
Windows 7 or above; Mac OS X 10.11 or above
Mobile Assistant Software Requirements iOS 9 or above; Android 4.4 or above
