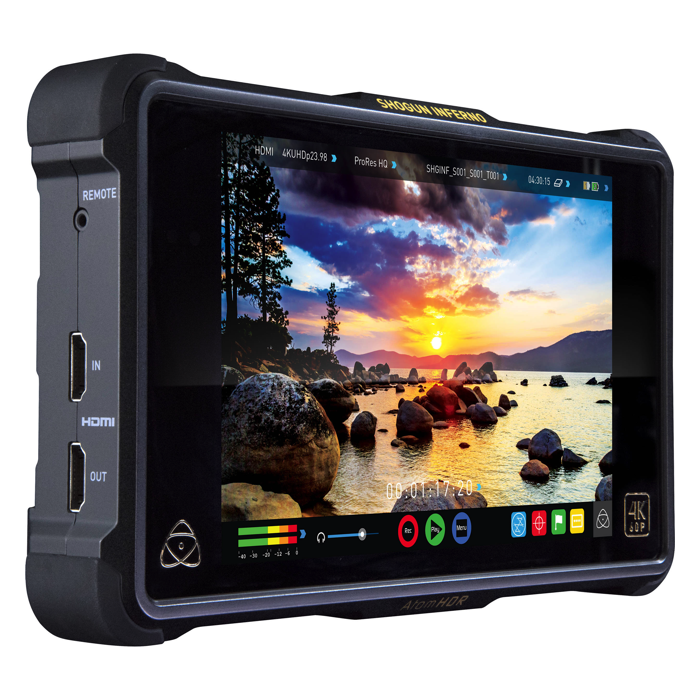

Atomos Shogun Inferno

£70 + VATPer day
£280 + VATPer week

Shogun Inferno combines the world’s most advanced HDR monitor with high resolution, high frame rate recording. Connect cinema cameras from Arri, Sony, Canon, Panasonic, Red or JVC over the QuadLink SDI or HDMI 2.0 connections to make mastering a high resolution, high frame rate, HDR workflow a reality.

AtomHDR image processing lets you shoot with the high brightness range of your camera’s Log profile while maintaining vibrant true-to-life colours. Conventional monitors lack this capability, displaying the brightness detail of Log but with a washed out image that makes judging exposure difficult. Be at the forefront of the HDR revolution by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.

The 10-bit panel resolves more colours (1.07 billion colours compared to 16.7 million for standard 8-bit panels) to ensure smooth colour transitions in both HDR and SDR (standard dynamic range) shooting. The 1500nit panel brings HDR to life, accentuating high contrast scenes. While for regular SDR scenes, use the brightness to take advantage of the 1500nit screen for hood-free outdoor monitoring.

The AtomHDR engine not only lets you set perfect exposure in the field, you can take a HDR output in either PQ or HLG standard to compatible HDR screens or accept HDR input from your NLE for mobile grading or for HDR connection from cameras with a PQ or HLG output.

Shogun Inferno combines high resolution recording, high frame rate recording and playback. Record Video from both HDMI and SDI cameras direct from the sensor to 4:2:2 10-bit ProRes or DNxHR up to an amazing 4K 60p or HD 240p. Record Raw over SDI up to 4K 30p either directly to CDNG or record to ProRes or DNxHR. Playback recorded ProRes or DNxHR files via the HDMI or SDI output at the same high frame rates to supporting monitors.

Atomos Shogun Inferno Hire London
Atomos Shogun Inferno Rental London

Included in Kit

SSD SanDisk Extreme 960GB Memory Card
Atomos USB 3.0 SSD Reader
Atomos Battery Charger
2x Hawk-Woods DV-970 Batteries
2x Atomos Batteries
2x Atomos Mains Cables
Noga Arm
D-Tap to AC Coiled Cable
Atomos Sun Hood (3 Parts)
2x Screws For Sun Hood
XLR Break Out Cable
Atomos Control Cable
(Please Ask If You Require Any HDMI/SDI Cables Or Mounts With The Recorder)

Specs

Screen
Touchscreen size: 7.1”
Resolution: 1920 x 1200
PPI: 325
Aspect ratio: 16:9 native
Color Gamut: REC709 HDTV
Look up table (LUT) support 3D LUT (.cube le format)
Anamorphic de-squeeze 2x, 1.5x, 1.33x, Panasonic 8:3
Technology SuperAtom IPS panel (capacitive touch), calibration to Rec.709
with optional calibration unit
Bit depth 10-bit (8+2 FRC)
Brightness 1500nit (+/- 10%)

HDR
AtomHDR: Yes

Supported Log Formats
Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C,
Panasonic Vlog, JVC JLog, Red LogFilm

Supported Gamuts
Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / BT2020 / DCI P3 / DCI P3+
Panasonic V Gamut, Arri Alexa Wide Gamut

PQ In/Out
Yes / Yes
In = Post Out = Monitor

Video Input/Loop Out
HDMI: 1 x HDMI (2.0)
SDI: Quad link 4 x 3G SDI or up to 12G single link SDI
Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video Output (Play Out)
HDMI: 1 x HDMI (2.0)
SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported Loop Out Formats
HDMI to HDMI
720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60
SDI to SDI
720p 50/60, 1080i 50/60, 1080pSF 24/25/30
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60

Video Signal Conversion
HDMI to SDI
720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60
SDI to HDMI
720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60

Supported Codecs & Frame Rates (Record & Playback)
Raw to CDNG (Record only)* Codecs Cinema DNG for supported
cameras (Sony FS5/FS7/FS700, Canon C300MKII, C500, Panasonic Varicam
RAW*)
Frame rates 4K DCI / 4K UHD; 24/25/30p
2K / 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120p
Raw to ProRes / DNxHR
Codecs Apple ProRes HQ, 422, LT
AVID DNxHR HQX. HQ, SQ, LB
Frame rates 4K DCI / 4K UHD; 24/25/30/50/60p
2K*** / 1080p; 24/SF24/25/SF25/30/
SF30/50/60/100/120/200/240p
Video to ProRes / DNxHR
Codecs Apple ProRes HQ, 422, LT
AVID DNxHR HQX. HQ, SQ, LB
Frame rates 4K DCI / 4K UHD; 24/25/30/50/60p
2K*** / 1080p; 24/SF24/25/SF25/30/
SF30/50/60/100/120/200/240p
1080i; 50/60i, 720p; 50/60p

Onboard Processing
Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
4K UHD downscale for HD monitoring
Yes – Loop-out and playback (Not available in RAW)
Audio in/out (48kHz PCM audio)
HDMI: 2 or 8ch 24-bit, camera dependent
SDI: 12ch 48kHz 24-bit
Audio: 2ch balanced XLR analog in/out
Dynamic range >90dB
Max signal level +24dBu
Max analog gain +52dB
48V Phantom Power for Mic

Remote Start/Stop
HDMI: Auto HDMI Trigger
Supported Protocols – Canon, Sony, Atomos Open Standard
SDI: SDI trigger camera selectable
Other: LANC control – Slave

Playback
Playlist: Yes
Genlock / LTC: Yes / Yes
Pre-roll record : Yes (HD 8s, 4K 2s)
Custom timelapse: Yes
Meta data tagging: Yes (10 tags available)

Supported Media (Approved List Only)
4K / HD (50/60/120p*)
SSD 2.5”, HDD (7,200 up to 1080p60)
HD
SSD 2.5”, HDD (5,400 up to 1080p30)

Power
Operating power 10 – 27W
Compatible batteries NP series and supporting accessories
Input voltage (battery) 6.2V to 16.8V
Battery time (based on 7.4V) –
5200mAh – up to 1.5hrs (monitor & record 4K 30p)
7800mAh – up to 2.2hrs (monitor & record 4K 30p)
DC In 1 x DC in (6.2 – 16.8V)
Continuous power Primary-secondary battery system Change batteries
without losing power Loop batteries continuously

Weight & Dimensions
Weight :
Without batteries & media 709g / 25.0oz
With batteries & media 1153g / 40.7oz
Dimensions (W x H x D mm):
214 x 127 x 45mm, 8.4 x 5 x 1.8”
