Aputure INFINIBAR PB12 RGBWW Full-Colour LED Set Of 8

£350 + VATPer day

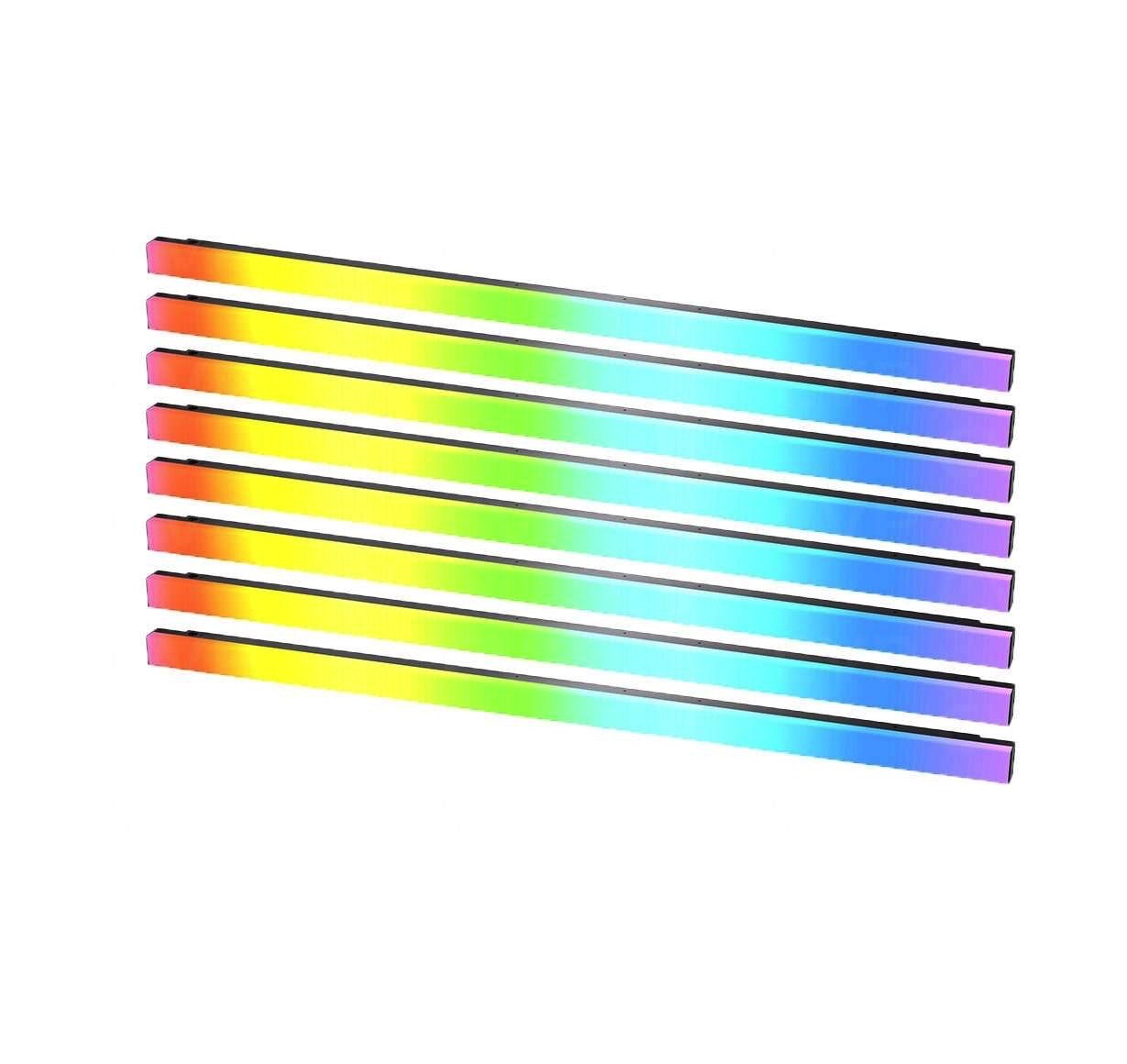

The INFINIBAR PB12 8-Light Kit includes eight of Aputure’s first 4-foot (120cm) full-color LED pixel bars.







Aputure INFINIBAR PB12 RGBWW Full-Colour LED Set Of 8 Hire Rental



Included in Kit

  • 8x INFINIBAR PB12
  • 8x 48W DC Power Adapter (3m)
  • 1x AC Locking Power Cable (4m)
  • 8x AC Locking Power Cable (1.5m)
  • 1x 330W Power Adapter with 8-Way Splitters
  • 16x Magnetic Spacer
  • 8x INFINIBAR Clamp to Baby Pin Adapter
  • 8x INFINIBAR Straight Connector
  • 1x 5mm Hex Wrench
  • 8x INFINIBAR PB12 45o Light Control Grid
  • 1x Flight Case

Specs

CCT
2,000K 10,000K

CRI
96+

TLCI
98+

CQS
96

SSI (D56)
74

SSI (Tungsten)
85

TM-30 RF (Average)
94

TM-30 RG (Average)
103

Colour Chipset
RGBWW

Beam Angle (Half-Peak)
120 Degrees

Lumens
2,077lm

Max Power Output
27W

Max Power Consumption
Fixture 36.5W

Power Supply
40W

Operating Voltage & Current
Fixture 24V, 1.8A

Power Supply
100V-240V 50/60Hz, 1.5A

Battery Capacity
7.4V, 8000mAh, 59.2Wh

Battery Life
Approx. 80 Mins @ Max Output

Charge Time
Approx. 150 Mins (24V/2.67A)

Pixel Mapping
96 Pixels

Operating Temperature
-10 C ~ 45 C / 14 F ~ 113 F

Control Methods
Sidus Link App, DMX/RDM via USB-C1, LumenRadio CRMX

Wireless Range
Bluetooth 80m / 262.5ft

Dimensions
Fixture 1,204 x 45 x 43mm / 47.4 x 1.77 x 1.69in
Fixture + Spacer 120.4 x 4.5 x 5.2cm / 47.4 x 1.77 x 2.05in
AC Power Supply 12.0 x 5.3 3.2cm / 4.72 x 2.09 x 1.26in
INFINIBAR Clamp 12.2 x 5.5 x 4.0cm / 4.8 x 2.17 x 1.57in
Case 127.7 x 13.0 x 12.5cm / 50.0 x 5.1 x 4.9in

CCT
2,000K 0.5m: 975 lux / 91 fc
1.0m: 350 lux / 33 fc
2,700K 0.5m: 1,350 lux / 125 fc
1.0m: 532 lux / 49 fc
3,200K 0.5m: 1,410 lux / 131 fc
1.0m: 542 lux / 50 fc
4,300K 0.5m: 1,500 lux / 139 fc
1.0m: 564 lux / 52 fc
5,600K 0.5m: 1,600 lux / 149 fc
1.0m: 593 lux / 55 fc
6,500K 0.5m: 1,650 lux / 153 fc
1.0m: 607 lux / 56 fc
7,500K 0.5m: 1.650 lux / 153 fc
1.0m: 617 lux / 57 fc
10,000K 0.5m: 1,510 lux / 140 fc
1.0m: 563 lux / 52 fc
Red 0.5m: 227 lux / 21 fc
1.0m: 85 lux / 8 fc
Green 0.5m: 793 lux / 74 fc
1.0m: 297 lux / 28 fc
Blue 0.5m: 131 lux / 12 fc
1.0m: 49 lux / 5 fc
Notes * Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately
